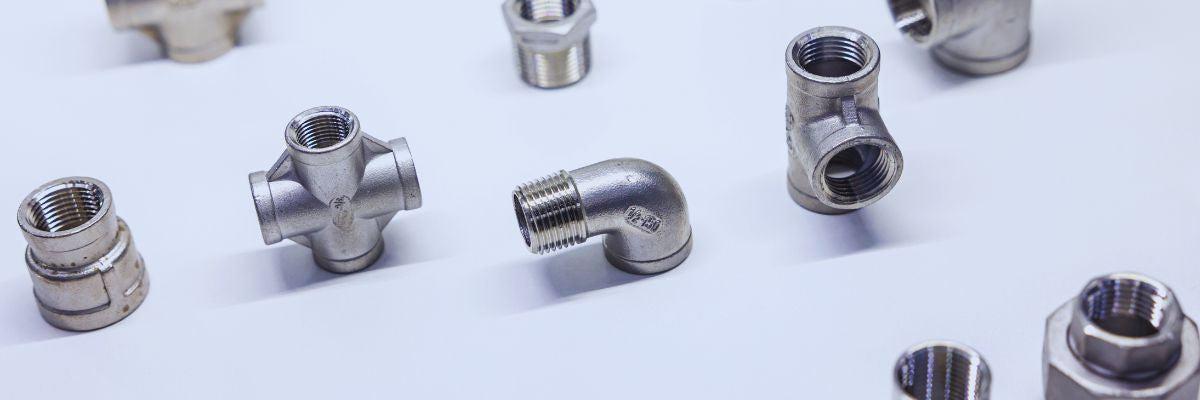

A Quick Guide to Plumbing Terms for Sanitary Fittings

In industries where cleanliness and hygiene are paramount—such as food, beverage, and pharmaceuticals—the right sanitary fittings are critical. Understanding the terms used for these components can help ensure that your system remains efficient, clean, and in compliance with safety standards. Below is an extended, alphabetical dictionary of plumbing terms related to sanitary fittings.

1. Adapters

Adapters are essential components that connect two pipes or tubes of different sizes or types. In sanitary systems, adapters ensure a clean and secure connection by maintaining the structural integrity of the piping system, minimizing the risk of leaks or contamination. They are vital for adapting between various fittings, materials, or dimensions while upholding strict hygiene standards.

• Key feature: Allows seamless transitions between different types or sizes of fittings while preserving sanitary conditions.

Figure 1 - Air Plug Tri-Clamp Adapter

2. Bushings

Bushings serve to reduce the size of an opening in a pipe or tube, enabling connections between pipes of different diameters. In sanitary systems, bushings ensure a smooth, clean connection and prevent contamination, making them ideal for systems that need to handle various fluid volumes or pipe sizes without compromising hygiene.

• Key feature: Facilitates step-downs in pipe sizes without risking contamination or leaks.

Figure 2 - NPT Reducing Hex Bushing

3. Caps

Caps are fittings used to close off the end of a pipe or tube in a sanitary system. Often employed to seal off unused piping sections, caps help prevent contamination or leaks when parts of a system are not in use. This makes them crucial in flexible, modular sanitary systems that may not always operate at full capacity.

• Key feature: Provides a hygienic seal on unused pipe ends to prevent contamination or leaks.

Figure 3 - Solid End Tri-Clamp Cap

4. Check Valves

Check valves are designed to allow fluid flow in one direction only, effectively preventing backflow, which could introduce contaminants into the system. These valves are essential in maintaining product integrity, ensuring that once a fluid passes through, it cannot return to the previous section of piping, preventing cross-contamination.

• Key feature: Prevents backflow, ensuring hygienic flow direction in sanitary systems.

Figure 4 - HSC Series Spring Check Valve

5. Clamps (Tri-Clamps)

Tri-clamps are a common and essential component in sanitary fittings, used to join two pipe sections or connect pipes to fittings and valves. They are easily disassembled, which is critical for regular cleaning and maintenance in industries where hygiene is a top priority. Tri-clamps are widely used due to their secure fit and ease of use.

• Key feature: Allows quick assembly and disassembly in sanitary systems, facilitating thorough cleaning.

Figure 5 - Single Pin Heavy Duty Tri-Clamp

6. Couplings

Couplings are fittings used to connect two pipes or tubes of the same diameter. In sanitary systems, they provide easy disassembly, which is crucial for maintaining cleanliness standards. These components ensure secure, leak-proof connections that can be easily removed for cleaning and inspection.

• Key feature: Enables tool-free connections that are easy to disassemble for cleaning and maintenance.

Figure 6 - Cam & Groove Coupler

7. Elbows

Elbow fittings change the direction of flow in a piping system, typically by 45 or 90 degrees. In sanitary systems, elbows are engineered to ensure smooth directional transitions, preventing fluid stagnation, which could lead to contamination. Their design ensures that sanitary standards are upheld even when redirecting flow.

• Key feature: Ensures smooth directional changes, preventing stagnation and maintaining sanitary flow.

Figure 7 - 90° Tri-Clamp Elbow

8. Ferrules

Ferrules are short, cylindrical fittings that are welded or clamped to the end of a pipe or tube to create a sanitary connection. Often used with tri-clamp systems, ferrules ensure secure and hygienic connections between pipes and other fittings, minimizing the risk of leaks or contamination.

• Key feature: Provides a smooth, secure sealing surface for sanitary connections.

Figure 8 - Long Weld Tri-Clamp Ferrule

9. Flanges

Flanges are circular discs used to connect pipes by bolting two flanges together. In sanitary applications, they are designed for easy cleaning and are used where strong, secure connections are required. Flanges must be engineered to prevent leaks while ensuring that cleaning and sanitation protocols can be followed efficiently.

• Key feature: Creates a durable, leak-proof connection in high-pressure sanitary applications.

Figure 9 - Weld Neck Flange

10. Gaskets

Gaskets are used to provide a seal between two joining surfaces, such as pipe connections or fittings. In sanitary systems, they are made from materials like silicone or PTFE, which are resistant to chemicals and can withstand high temperatures. Gaskets are crucial for preventing leaks and contamination, ensuring the system's integrity.

• Key feature: Prevents leaks and contamination, ensuring a reliable seal in sanitary systems.

Figure 10 - Tri-Clamp Gasket

11. Hose Barbs

Hose barbs connect hoses to other components such as pipes, fittings, or valves. They are designed with ridges that grip the inside of the hose to create a secure, leak-proof connection. In sanitary applications, they ensure that hoses can be attached without risking contamination, making them vital for industries requiring flexible connections.

• Key feature: Ensures a secure, leak-proof connection for hoses, maintaining cleanliness.

Figure 11 - Brewery Hose Barb Tri-Clamp Adapter

12. Pipe

Pipe, unlike tube, is typically measured by its nominal size, which refers to the approximate inside diameter of the pipe. However, the actual dimensions of a pipe can vary based on its wall thickness. Because of these variations, pipes are rarely used in sanitary applications. Sanitary systems require precise internal dimensions to ensure smooth fluid flow and easy cleaning. Pipes, with their inconsistencies in wall thickness and internal diameter, are often seen as difficult to sanitize and clean thoroughly, making them unsuitable for industries where hygiene is paramount.

• Key feature: Rarely used in sanitary systems due to nominal sizing inconsistencies that complicate cleaning and hygiene maintenance.

Figure 12 - Stainless Steel Pipe

13. Reducers

Reducers are fittings used to connect pipes of different diameters, allowing for a gradual reduction in pipe size while maintaining smooth, uninterrupted fluid flow. In sanitary systems, reducers are essential for preventing turbulence, which can lead to contamination, ensuring that hygienic standards are maintained.

• Key feature: Allows smooth transitions between pipe sizes, preventing turbulence and contamination.

Figure 13 - Tri-Clamp Concentric Reducer

14. Sanitary Tube

Sanitary tubes are specifically designed for use in hygienic applications, such as in the food and beverage industry. These tubes are polished inside to minimize bacterial growth and ensure a smooth, clean fluid flow. They are measured by their outside diameter (OD) and are engineered to meet stringent cleanliness standards.

• Key feature: Provides smooth, clean fluid flow in applications requiring the highest hygiene standards.

Figure 14 - Stainless Steel Tube

15. Sight Glasses

Sight glasses allow operators to visually inspect the fluid inside a system without opening the piping. These components are essential in sanitary applications, as they let users confirm that liquid flow is uninterrupted and uncontaminated while maintaining a sealed system.

• Key feature: Enables visual inspection of fluid flow without compromising sanitary integrity.

Figure 15 - Tri-Clamp Sight Glass

16. Spools

Spools are pre-assembled sections of tubing with fittings already attached at both ends. They simplify the installation process by allowing quick, clean connections between components, ensuring that sanitary standards are maintained while reducing the need for on-site fabrication.

• Key feature: Pre-assembled tubing sections for quick and hygienic installation.

Figure 16 - Stainless Steel Tri-Clamp Spool

17. Tees

Tee fittings split the flow of liquid into two directions. In sanitary piping systems, tees ensure that fluid is directed smoothly to multiple points without causing fluid stagnation or bacterial buildup. Sanitary tees are essential for maintaining clean flow distribution in complex piping layouts.

• Key feature: Ensures hygienic flow distribution across multiple paths in sanitary systems.

Figure 17 - Tri-Clamp Tee

18. Threaded Fittings

Threaded fittings have internal or external threads that allow them to be screwed into corresponding threaded pipes or fittings. While convenient for quick connections, threaded fittings in sanitary applications must be carefully cleaned to prevent bacteria from accumulating in the threads.

• Key feature: Provides quick connections but requires meticulous cleaning to maintain hygiene.

Figure 18 - Male NPT Tri-Clamp Adapter

19. Tube

Tube refers to cylindrical pipes measured by their outside diameter (OD). In sanitary systems, certain types of tubes are engineered to meet hygiene standards, typically through polished finishes and corrosion-resistant materials that prevent bacterial growth. Generally, tube can be different shapes or sizes and is used more for mechanical fabrication such as platforms and supports.

• Key feature: Provides versatility in various systems but only specific types are suitable for sanitary applications.

Figure 19 - Structural Tube

20. Y-Fittings

Y-fittings, also known as Wyes, split the flow of liquid into two directions at a 45-degree angle. This gradual division reduces turbulence and pressure loss, preventing contamination from stagnation. In sanitary systems, Y-fittings are ideal for ensuring clean and efficient flow distribution.

• Key feature: Provides a smooth, hygienic division of flow, minimizing contamination risks.

Figure 20 - Tri-Clamp Wye

By understanding the plumbing terms associated with sanitary fittings—such as adapters, check valves, ferrules, and Y-fittings—you can ensure your system meets the highest hygiene and performance standards. Whether in food processing, beverage production, or pharmaceuticals, selecting the right components and knowing their functions is critical for maintaining clean, efficient, and safe systems.
