Cellar Supply Carbonation Stone Assembly

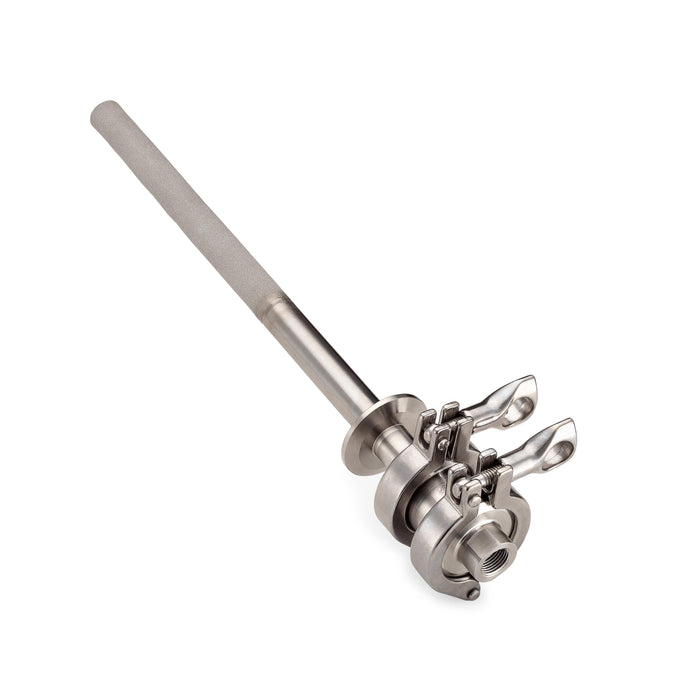

Cellar Supply Carbonation Stone Assembly – 12″, ¾″ Diameter, with Sanitary Gas Check Valve

Designed for brite tanks ranging from 7 bbl to 60 bbl, the Cellar Supply Carbonation Stone Assembly delivers reliable CO₂ diffusion with minimal aroma loss. This complete assembly offers a thread-free solution for clean, consistent in-tank carbonation, featuring a 12″ sintered carbonation stone and a Sanitary Gas Check Valve.

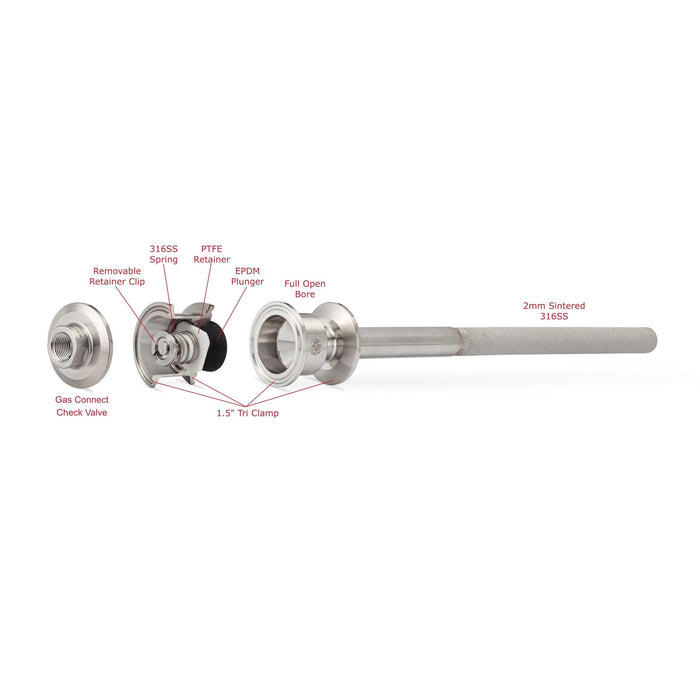

The 12″ stone includes 8″ of sintered 316L stainless steel and a solid 4″ collar to pass through thick glycol jackets and insulation. Connected externally via a 1.5″ Tri-Clamp flange, the check valve ensures safe gas flow while preventing backflow into your CO₂ line. This assembly integrates seamlessly into your acid CIP loop to reduce beer stone buildup and keep your carbonation system performing at its best.

All orders are shipped from our Canadian warehouse, ensuring fast and reliable delivery across North America.

Key Features

• 12″ carbonation stone with 8″ sintered diffusion zone and 4″ support collar
• Stone diameter: ¾″ for tanks up to 60 bbl
• Dual 1.5″ Tri-Clamp flanges for easy installation and sanitation
• Includes 2nd Generation Sanitary Gas Check Valve with ⅜″ FNPT gas inlet
• 5 psi wetting pressure (combined check valve and stone)
• 2µ sintered pore size for fine, consistent carbonation
• Comes with EPDM gaskets and 1.5″ stainless steel clamp
• Ideal flow rate: ~5–6 LPM for slow, even carbonation

Specifications

• Material: 316L Stainless Steel (Stone), 304 Stainless Steel (Welded Collars & Valve)
• Connection: 1.5″ Tri-Clamp
• Gas Inlet: ⅜″ FNPT (via check valve)
• Length: 13.75″ overall (12″ in-tank protrusion)
• Diameter: ¾″
• Pore Size: 2µ
