ACV Air Blow Tri-Clamp Check Valve

Air Blow Check Valve

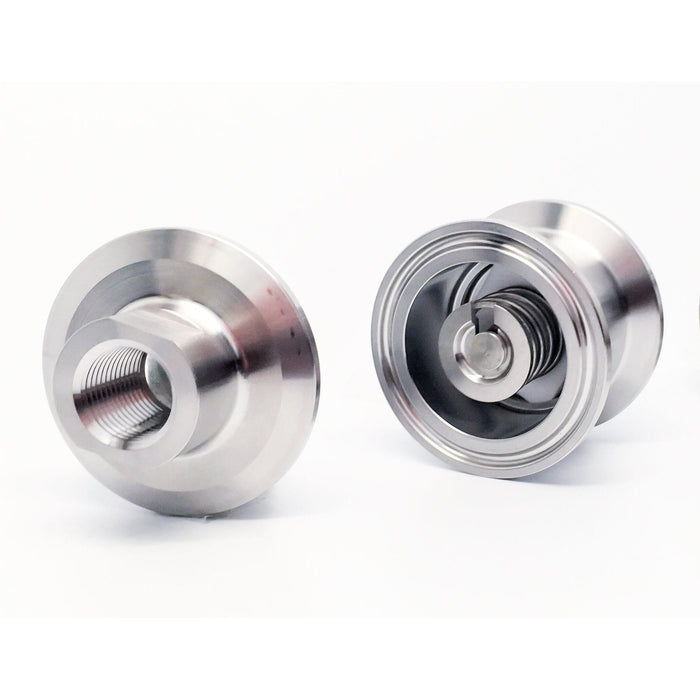

The Air Blow Check Valve provides a reliable solution for pressurizing sanitary process lines with air while preventing backflow. Designed for breweries, distilleries, and food processing facilities, this Tri-Clamp valve features an air-to-open, spring-to-close mechanism that ensures safe operation during line clearing or CIP rinsing.

This 1.5" air check valve is made from 304 stainless steel with a hygienic PTFE plug and Buna seal. It is a practical choice for gas inlet lines, carbonation setups, and cleaning systems.

All orders are shipped from our Canadian warehouse, ensuring fast and reliable delivery across North America.

Key Features

• Tri-clamp connection for secure installation and easy removal
• Air-to-open, spring-to-close design for backflow prevention
• 304 stainless steel body with PTFE and Buna internal components
• Ideal for brewery CO₂ lines, tank blowdowns, and CIP systems

Specifications

• Part Number: GS-ACV-150-304
• Material: 304 Stainless Steel, PTFE plug, Buna gasket
• Connection: 1.5" Tri-Clamp
• Max Operating Pressure: 100 PSI
• Max Operating Temperature: 212 °F
• Dimensions: Refer to technical drawing
