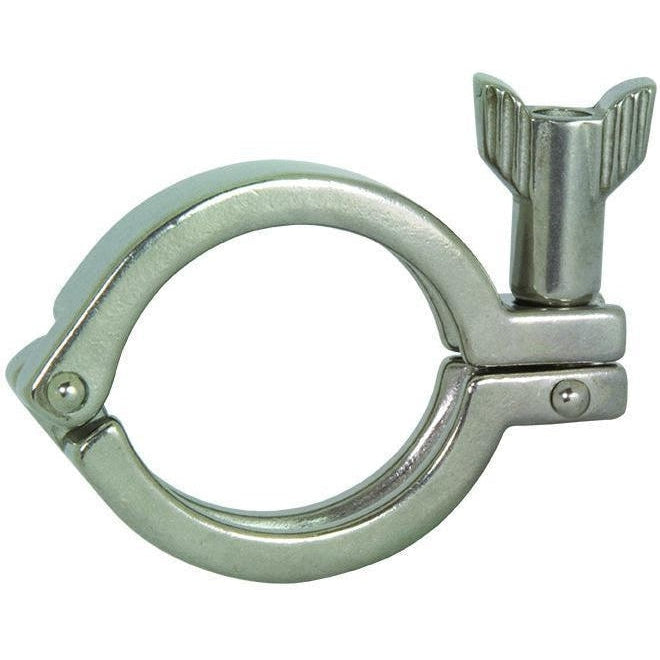

13MHHM Single Pin Heavy Duty Tri-Clamp with Serrated Wing Nut

Tri-clamps are one of the most common sanitary connection types in North America. It consists of a gasket between two tri-clamp ferrules or flanges which are mechanically tightened in place with a clamp. Made from stainless steel, it is used for piping in the food, beverage, biotech, and pharmaceutical industries. This clamp uses a serrated wing nut to help grip the nut with gloved hands. They are verified by both ASME A270 and 3A certifications.

Note:

• Wingnut tightened to 25 in. lb. of torque


Safety Notes

• Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads.
• Please note the pressure ratings of the described unions may be above the recommended pipeline operating pressures.

Catalog Page

• DPL418 - 564


Dimensional Specifications

• Dimensional Specs
