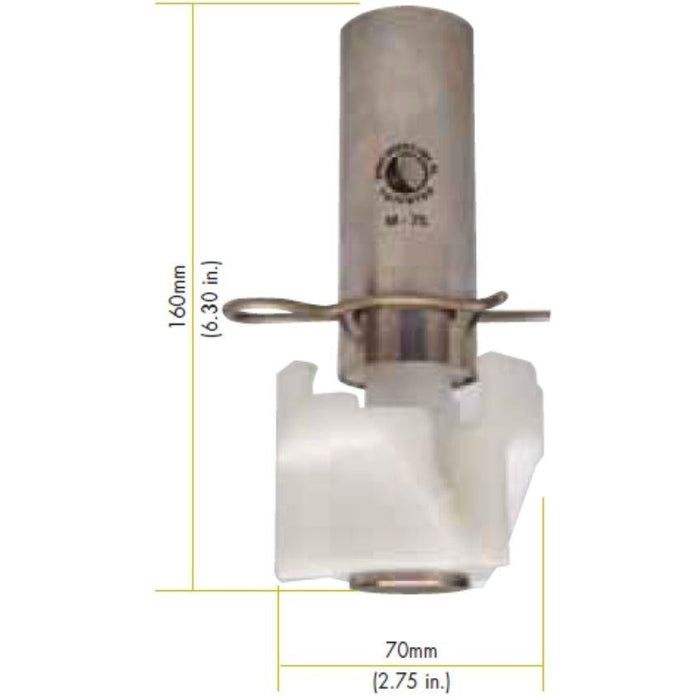

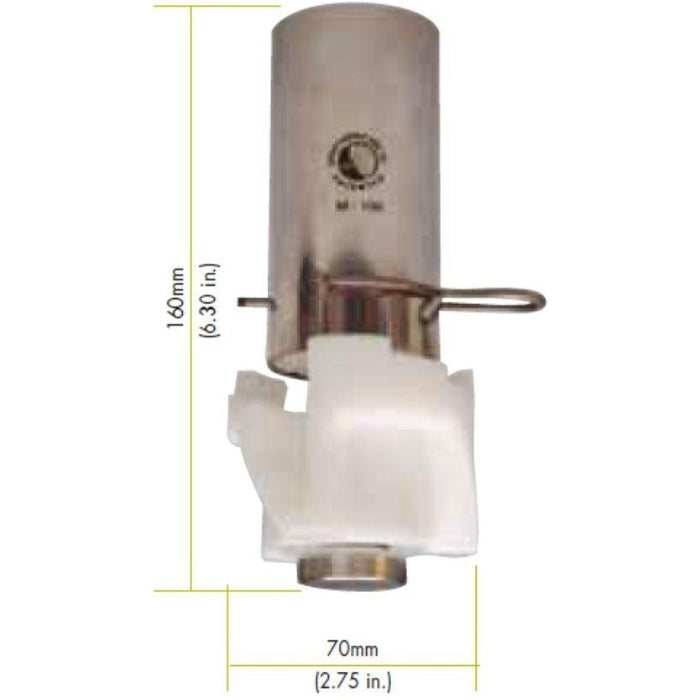

M-Series Rotating Tank Cleaning Nozzle

SKU: F0005070
  • Sale
  • Regular price $215.00


The M-Series sanitary design is ideal for CIP applications as it provides superior tank cleaning results at low pressures and low flows. The M-Series is specially designed for CIP tank cleaning applications in the Wine, Food, Beverage, Dairy, Chemical,
Pharmaceutical and similar industries.

Powered by the cleaning fluid itself, they distribute an even, heavy, stream-like pattern unique to the M-Series only, to thoroughly clean tank interiors. With special emphasis on cleaning points of entry, along with a concentrated downward wash-jet for cleaning centralized agitators, the M-Series produces a superior cleaning action when compared to similar cleaning devices.

The M-Series consists of a shaft/body manufactured in high-grade stainless steel (AISI 316), and a rotor in a moulded ACETAL-CoPolymer†† (FDA approved material).

Designed with simplicity in mind, there are no bearings to lock-up, corrode or break down. The M-Series Tank Washer is powered by the cleaning fluid itself to rotate a unique patented mist-reducing head at a wide range of operating pressures. Reduction of spray mist allows the formation of larger spray droplets, which provides a higher degree of washing impact in comparison with competitive units. Its patented self-cleaning feature incorporates a downward wash-jet for cleaning centralized agitator units, and a cleaning stream that is also directed to the point of entry, the top half
and sides of the tank for maximum cleaning efficiency.

Features:

  • Recommended Pressure: 1.5 Bar Gauge min (30 psi)
  • Connection: Fits in any standard A270 Tubing
  • Weight:
    • M-50 0.19kg (0.41lb)
    • M-75 0.44kg (1.0lb)
    • M-100 0.5kg (1.1lb)
  • Operation: Self-operated by cleaning fluid
  • Max Temperature: 120°C (250°F)
