SuperKlean

3600 Series Hot & Cold Water Washdown Mixing Station

SKU: 3600M-B
  • Sale
  • Regular price $739.00


Features:

  • Ball valves for easier shutoff while maintaining its original characteristics.
  • Globe valves allow for more control.
  • Incorporated Y-style body with check valves and ball joint unions for superior flexibility during installation.
  • Inlet centre lines which have the same dimensions as most of our competitors.
  • Includes mounting plate, hose rack, and optional temperature gauge.

Principal Parts, Material, & Ratings:

  • Inlet / Outlet Diameter: 3/4″ NPT
  • Mixer Body: Brass / Stainless Steel
  • Ball Valves: Bronze / Stainless Steel
  • Hose Rack: 304 Stainless Steel
  • Temperature Gauge: (optional) Stainless Steel
  • Maximum Pressure: 150 PSI
  • Maximum Temperature: 200° F (93° C)
  • Weight: 16 Lbs (17 Lbs with Temperature Gauge)

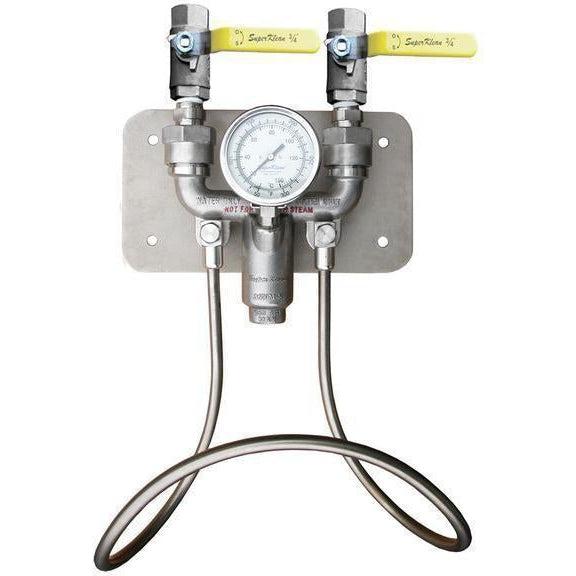

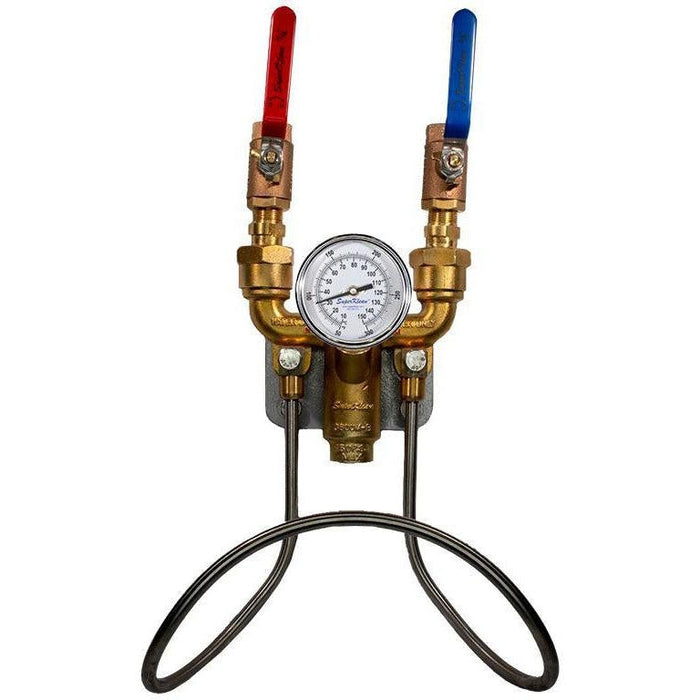

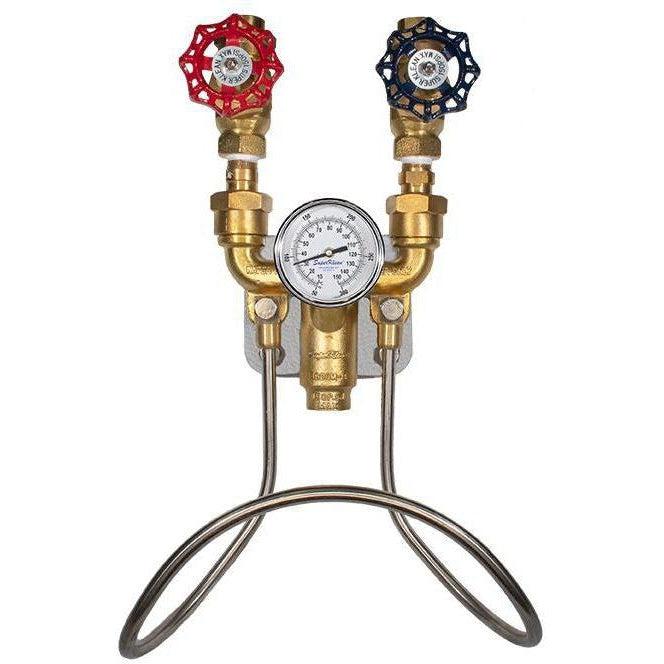

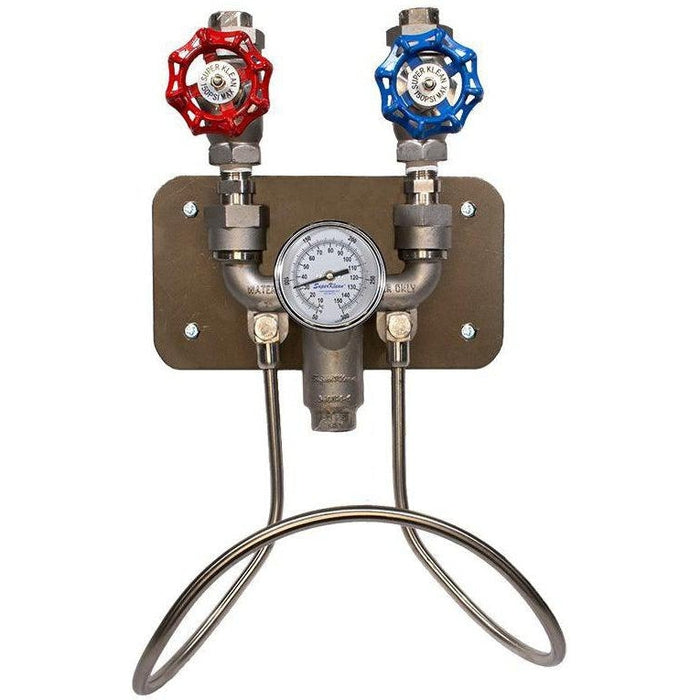

SuperKlean now offers a hot & cold water mixing units with ball valves for easier shutoff while maintaining its original characteristics. The unit uses “Y” style body mechanics with lift check valves and ball joint unions for superior flexibility during installation. SuperKlean’s inlet centre lines have the same dimensions as most of our competitors’ units. Our units come with a mounting plate for easy behind the unit cleanup, hose rack for easy user access to the hose, and an optional temperature gauge for accurate temperature readings at the outlet.
