SuperKlean

Hoses

SKU: UW-25-3/4
  • Sale
  • Regular price $359.90


HOSES

Features
  • Flexible, lightweight, economical, durable, and safe construction.
  • Your choice of standard adapters on every assembly made.
  • Assemblies in lengths of 25′, 50′, 75′, and 100′ and can also be supplied in increments of 25′ up to 400′.
  • Wide variety of hose constructions and materials to suit all of your washdown needs.
  • Custom assembled hoses professionally made to your exact specifications, with fittings of your choice.

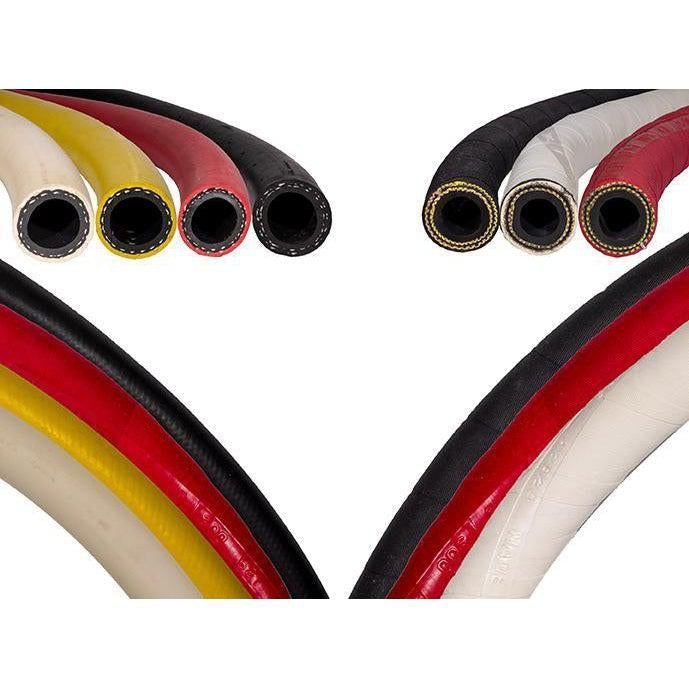

All SuperKlean hoses are flexible, lightweight, economical, durable, and safe. They come with your choice of end swivel adapter for nozzles and 3 piece adapters for mixing units. Hoses are available in lengths of 25′, 50′, 75′, and 100′ and can also be supplied in increments of 25′ up to 500′. SuperKlean offers a wide variety of hose constructions and materials to suit all your washdown needs. Please review the information listed below for additional specifications on hoses offered by SuperKlean or contact us for additional details regarding your specific needs.

Colors:
  White, Black, Red, Yellow



 Part # Inner Diameter Max Pressure*
Cover Colour Cover Material Tube Material Reinforcements
UW 3/4" 300 PSI
White
Smooth EPDM EPDM 4 textile piles
UB 3/4" 300 PSI
Yellow
Smooth EPDM EPDM 4 textile piles
UR 3/4" 300 PSI
Red
Smooth EPDM EPDM 4 textile piles
UY 3/4" 500 PSI
Yellow
Smooth Nitrile Nitrile 4 aramid piles
UBS 5/8" 300 PSI
Black
Wrapped EPDM EPDM 2 piles poly
URS 5/8" 300 PSI
Red
Wrapped EPDM EPDM 2 piles poly
UWS 5/8" 300 PSI
White
Wrapped EPDM EPDM 2 piles poly

*Warnings: Couplings attached with bands or clamps may reduce working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guideline.



Addition Options (available by request):

  • Stainless Steel Fittings
  • FGHT Brass
  • FGHT Stainless Steel
  • Ball Type Brass
  • Ball Type Stainless Steel
  • Hose Guard Stainless Steel Fittings
