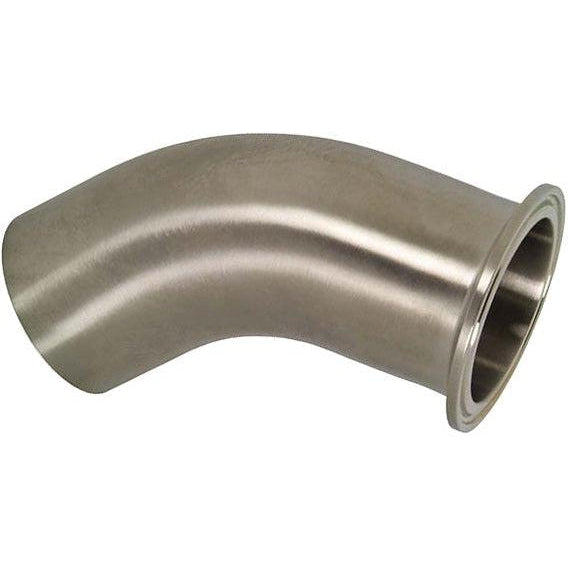

T2KM High Purity BioPharm - 45° Clamp x Weld Elbows
by Dixon
SKU T2KM-050PL
Original price
$46.20
-
Original price
$236.00
Original price
$46.20
$46.20
-
$236.00
Current price
$46.20
Applications:
- High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Specifications:
- All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
- 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
- 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
- PL Finish SF1 (OD=32R a- ID=20R a) or PM Finish SF4 (OD=32R a- ID=15R a)
Note:
- Product markings per ASME BPE 2012 DT-10.1
- Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
- Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
- The part number will describe the part configuration and size.
- MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification, each finish will have a different colour cap; the PL finish has blue caps, and the PM finish has white caps.
Catalogue Page:
Certifications:
Dimensional Specifications:
