SuperKlean

DuraFlow Spray Nozzle

SKU: DS150S-DB
  • Sale
  • Regular price $159.70


DS150S SERIES

Features:

  • Designed for hanging hose applications (from overhead).
  • Trigger lock to prevent accidental spraying.
  • Quick connect receptacle for accessories.
  • Compatible with DuraWand.

    Principal Parts, Material, & Ratings:

    • 304 stainless steel construction
    • 1/2” female NPT inlet.
    • Maximum Pressure: 150 PSI
    • Maximum Temperature: 200° F (93° C)
    • Weight: 1.53 lbs



    STANDARD
    Inlet Pressure Flow Rate
    *(PSIG) *(GPM)
    25 2.93
    50 3.86
    75 4.91
    100 5.78
    125 6.71
    150 7.19
    Note: Standard flow rates can be achieved with the purchase of flow restrictor adapter.
    HIGH FLOW
    Inlet Pressure Flow Rate
    *(PSIG) *(GPM)
    25 4.39
    50 6.54
    75 8.18
    100 9.56
    125 10.83
    150 11.89
    * Estimated



    SuperKlean’s new DuraSpray spray nozzle was specifically designed for hanging nozzle applications common in industrial environment with minimal space for normal operation. Its unique cover design is not only durable, but also incorporates a locking device to prevent accidental spray. The new DuraSpray spray nozzles have variable spray patterns, adjustable from fan spray to solid stream, adjustable by the amount of pressure applied to the trigger mechanism. Water conservation is assured upon release of lever by the drip-free automatic shutoff feature. SuperKlean DuraSpray spray nozzles are available in 300 Series Stainless Steel and weigh a total of 1.53 Lbs.

    Do Not Connect Nozzle Directly To Live Steam!

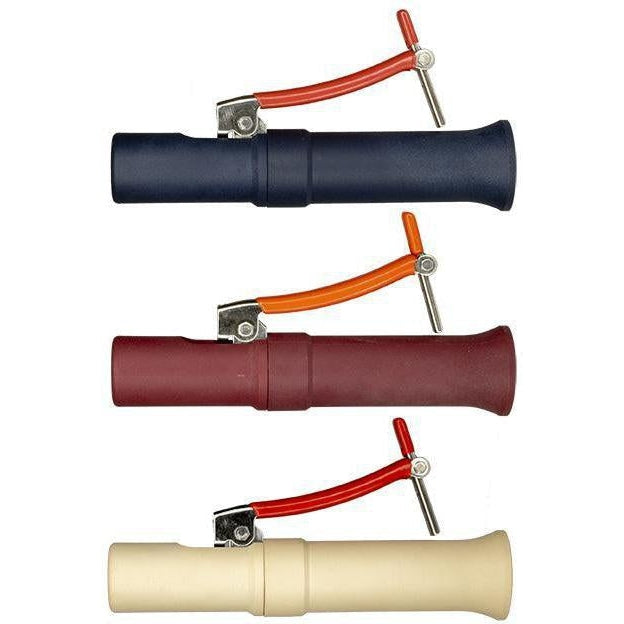

    Colours: Dark Blue, Red, and White
