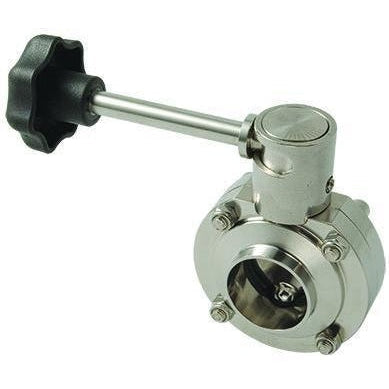

B5107 Series Butterfly Valve with Infinite Handle

by Dixon
SKU B5107S100CC-B
Original price $247.00 - Original price $1,200.00
Original price
$247.00 - $1,200.00
Current price $321.00
Connection: Clamp
Seat Material: Silicone
Size: 1"

Butterfly valves are one of the most common sanitary valve types in North America. It consists of a wafer in a round seat and the handle or actuator can help control the amount of flow. Made from stainless steel, it is used for piping in the food, beverage, biotech, and pharmaceutical industries. These butterfly valves come with an infinite position handle allowing for better flow control than other handle types. They are verified by both ASME A270 and 3A certifications.


  • Break torque: 20 in. lbs.
  • Flow coefficient: 7 CV
  • Low resistance to flow
  • Bi-directions flow
  • Gentle to media
  • Suitable for low and medium viscosity fluids
  • Can be serviced in the field
  • Self-draining
  • All wetted surfaces are sanitary finished to < 32Rƒ?�
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68 °F / 20 °C
  • The handle is not assembled when shipped. To order with handle assembled on the valve please request assembly in the special instructions of your order.

Catalog Page

Dimensional Specifications

  1. Dimensional Specs
