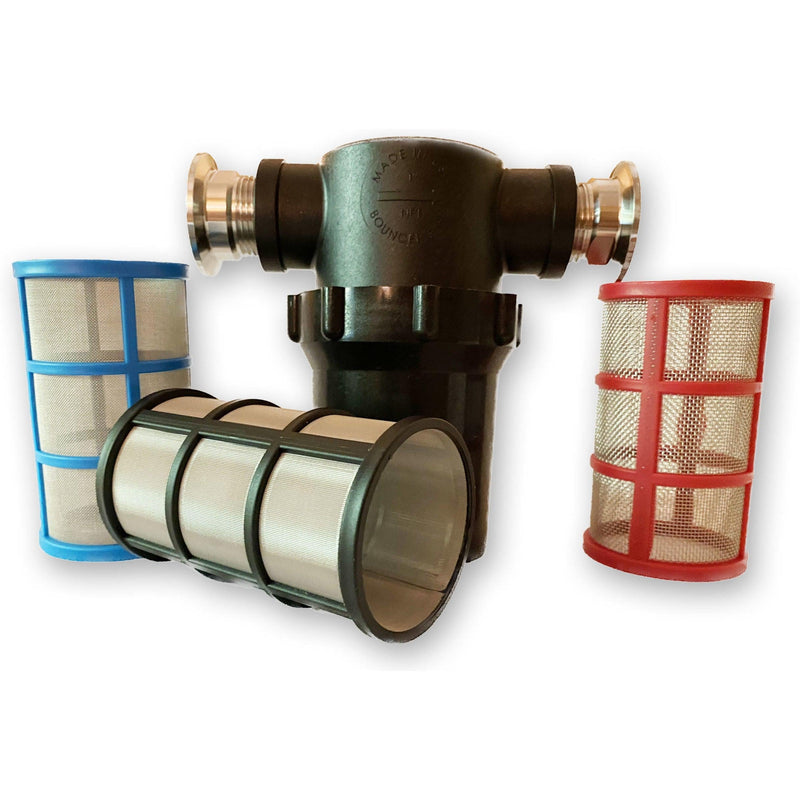

Bouncer Pro D Filter

• Designed for Artisan Distillers
• Filters out ingredients, barrel char, fine carbon particles, flies, and more during transfer and bottling
• Designed to be compatible with the high alcohol content of spirits and can also be used to protect heat exchangers
• Operates up to 100C/212F

Model: Bouncer Pro D

• Application: Inline Filtration
• Connectivity: Stainless steel 1.5-inch tri-clamp and 1″ NPT female
• Screens:
• Red 20 mesh (950 microns)
• Blue 50 mesh (304 microns)
• Black 250 mesh (40 microns)

• Filter Area: 29.73 square inches (19,181 square mm)
• Max operating pressure: up to 150 psi at 21 C / 70 F and 100 psi at 52 C / 125 F
• Weight: 1 pound, 8 oz. / .69kg (with tri-clamp adaptors and white screen)
• Accessories included:
• Stainless steel tri-clamp adaptors
• roll of pipe thread tape
• three screens (see above)
• Country of origin: U.S.A

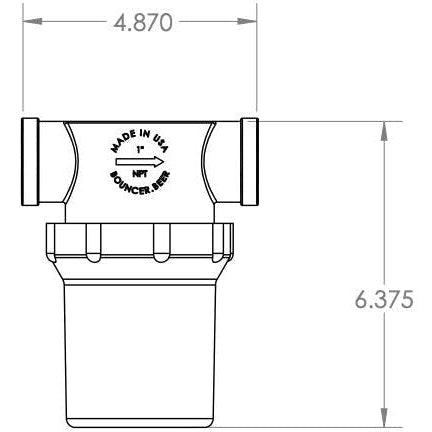

• Dimensions: (see drawing)

Materials:

1.  Top:  black, 20% glass-filled polypropylene
2.  Bowl:  black, 20% glass-filled polypropylene
3. Gasket:   EPDM
