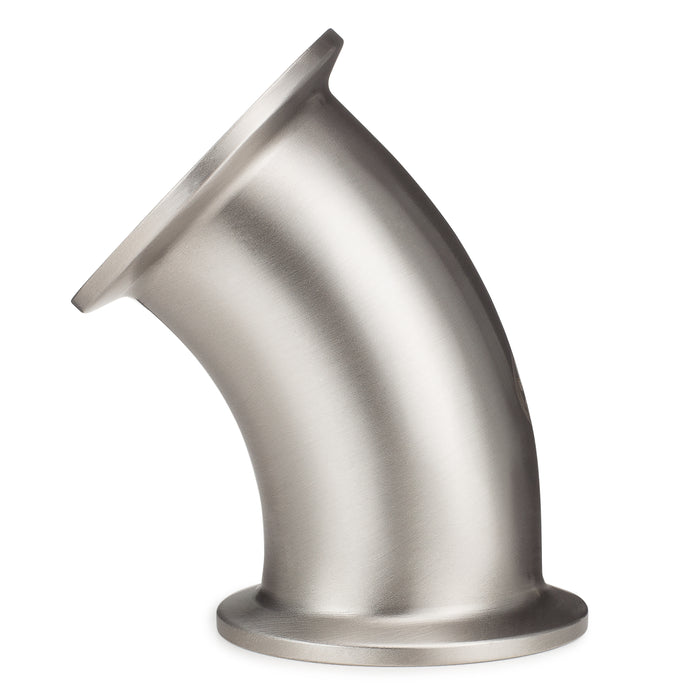

2KMP 45° Tri-Clamp Elbow
2KMP 45° Tri-Clamp Elbow – 304 Stainless Steel
The 2KMP 45° Tri-Clamp Elbow provides a smooth, sanitary solution for redirecting process flow in hygienic piping systems. Designed for clean transitions with minimal turbulence, this elbow fitting is ideal for applications in the food, beverage, brewery, distilling, biotech, and pharmaceutical industries. The 45° bend helps optimize flow paths without the sharp angles of a standard 90° elbow, reducing shear and aiding in cleaning and product movement.
This tri-clamp elbow features ferrules on both ends for quick and secure installation and disassembly, making it ideal for clean-in-place (CIP) systems and frequently serviced pipelines. Constructed from durable 304 stainless steel with a polished interior and brushed exterior, the 2KMP meets both ASME A270 and 3A Sanitary Standards for hygienic performance.
All orders are shipped from our Canadian warehouse, ensuring fast and reliable delivery across North America.
Key Features
- 45° angle for smoother transitions and improved flow direction
- Tri-Clamp ends for easy assembly and disassembly
- 304 stainless steel construction with sanitary polish
- Ideal for use in breweries, distilleries, and food-grade systems
- Complies with ASME A270 and 3A Sanitary Standards
Specifications
- Material: 304 Stainless Steel
- Certifications: 3A Certified, ASME A270 Compliant

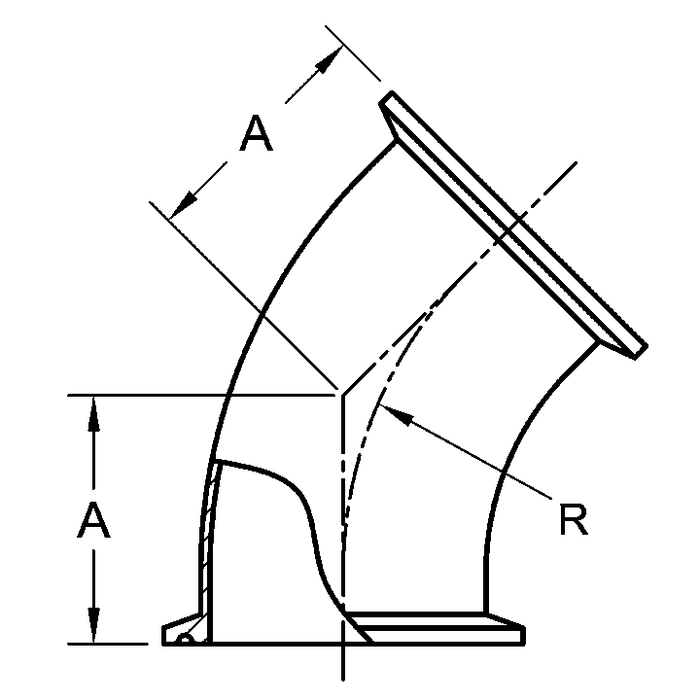

- Dimensions: Based on tube O.D. and elbow radius; see dimensional drawing
Dimensions
| Tube O.D. | A | R |
| 1" | 1.12 | 1.50 |
| 1.5" | 1.44 | 2.25 |
| 2" | 1.75 | 3.00 |
| 2.5" | 2.06 | 3.75 |
| 3" | 2.37 | 4.50 |
| 4" | 3.12 | 6.00 |
