Dixon

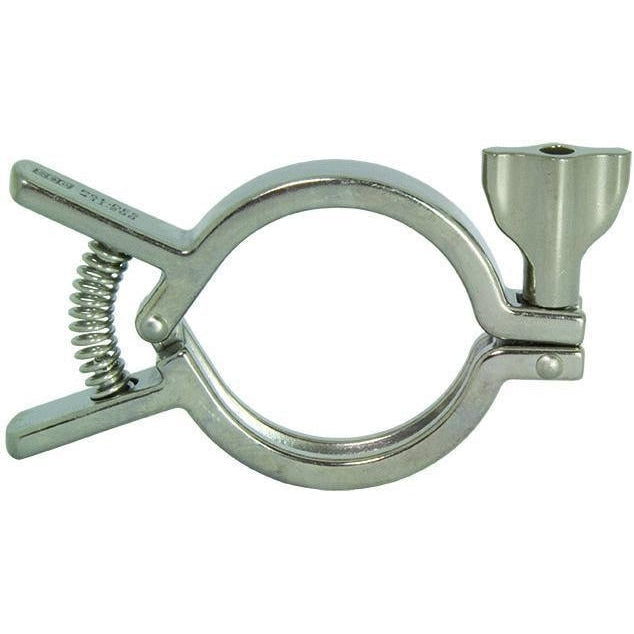

13MHHM Single Pin Squeeze Tri-Clamp

SKU: 13MHHM-Q75
  • Sale
  • Regular price $18.43


Tri-clamps are one of the most common sanitary connection types in North America. It consists of a gasket between two tri-clamp ferrules or flanges which are mechanically tightened in place with a clamp. Made from stainless steel, it is used for piping in the food, beverage, biotech, and pharmaceutical industries. This single pin clamp comes with a squeeze clamp so that the connection can be installed with one hand. They are verified by both ASME A270 and 3A certifications.

Note:

  • Wingnut tightened to 25 in. lb. of torque

Safety Notes:

  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipeline operating pressures.

Catalog Page:

Dimensional Specifications:
