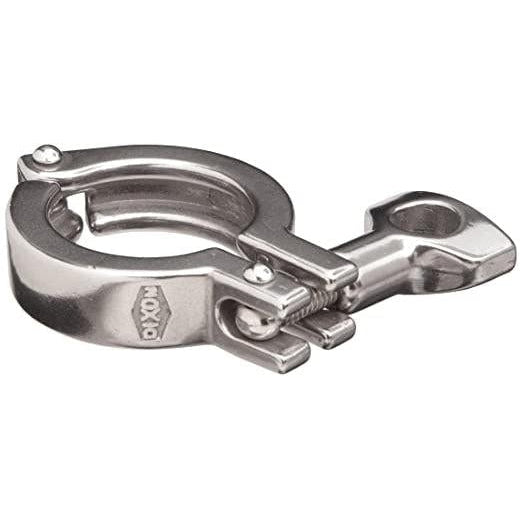

13MHHM Single Pin Heavy Duty Tri-Clamp with Cross Hole Wing Nut

by Dixon
SKU 13MHHM50-75
Original price $5.89 - Original price $51.30
Original price
$5.89
$5.89 - $51.30
Current price $5.89
Material: 304 Stainless Steel
Size: 0.5-0.75"

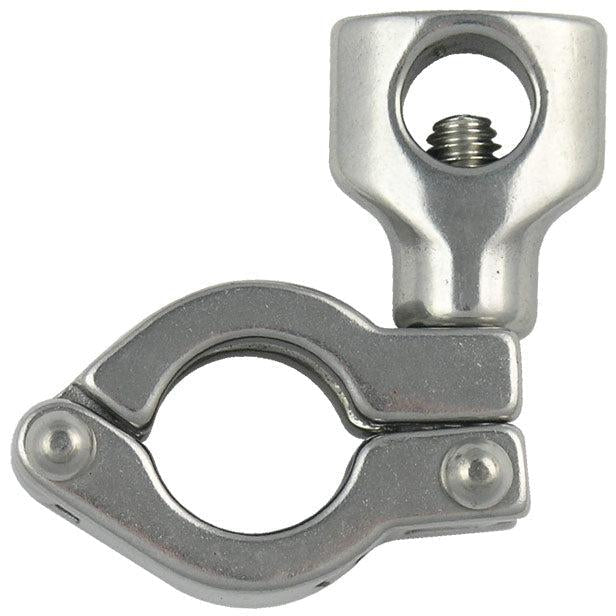

Tri-clamps are one of the most common sanitary connection types in North America. It consists of a gasket between two tri-clamp ferrules or flanges which are mechanically tightened in place with a clamp. Made from stainless steel, it is used for piping in the food, beverage, biotech, and pharmaceutical industries. This single-pin clamp has a cross-hole wing nut so it can be tightened with tools; it also has a hex cut on the wingnut so a wrench can be used easily. They are verified by both ASME A270 and 3A certifications.

Note:

  • Wingnut tightened to 25 in. lb. of torque

Safety Notes:

  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to the required torques. Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipeline operating pressures.

Catalog Page:

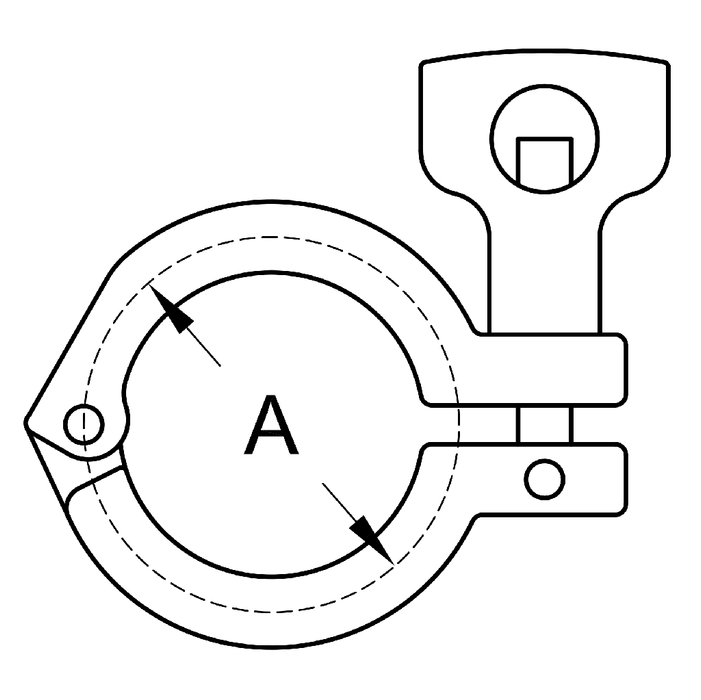

Dimensional Specifications:
